AI + STACK

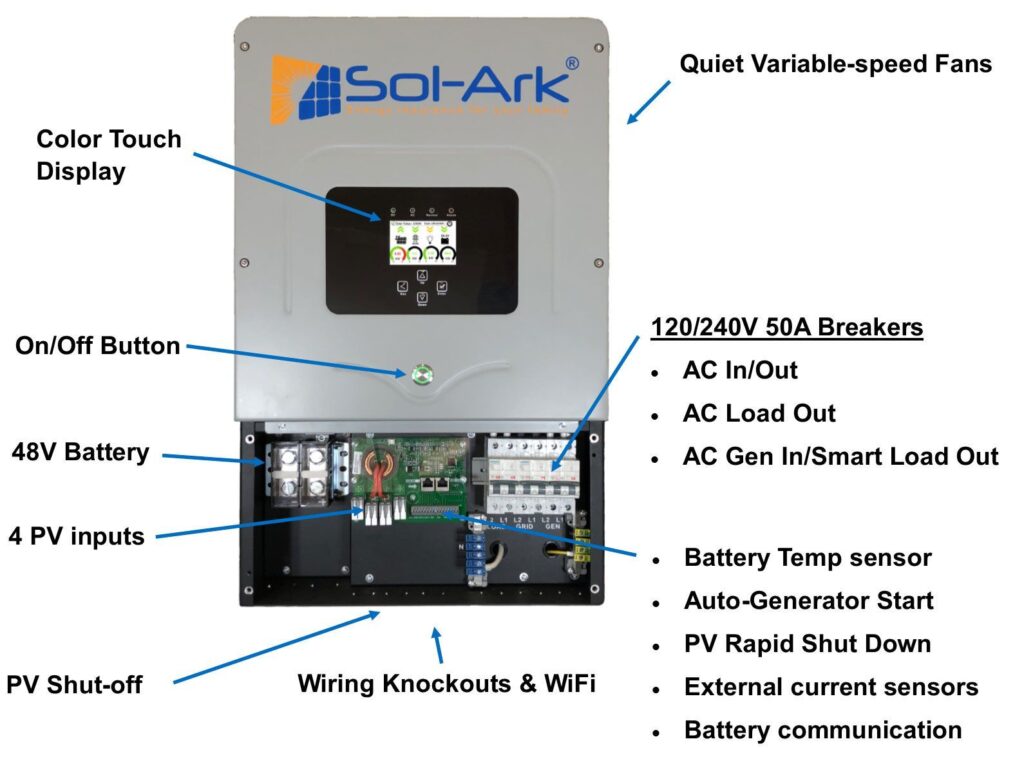

SOL-ARK 12K ALL-IN-ONE SOLAR GENERATOR

SOLAR OUTPUT POWER 12000W

Max allowed PV power 8,250W + 8,250W = 16,500W
Max PV power delivered to Battery & AC outputs 12,000W
Max DC voltage 500V@18A, 450V@20A
MPPT voltage range 150-425V
Starting Voltage 175V
Number of MPPT 2
Solar strings per MPPT 2 w/o fuses, 3 w/fuses
Max DC current per MPPT
(self limiting)
20A@300V, 18A@400V
Max AC Coupled Input
(Micro/String – Inverters)
9,600W

MECHANICAL DATA

Dimensions 28.0″ x 17.375″ x 9.37″
Weight 74 lbs
Enclosure NEMA Type 1 (Indoor Use)
Ambient Temperature
(3 speed variable fans)
-25 to 55C, >45C derating
Display Color touch screen
Wifi Communication
(monitoring or SW updates)
Included
Snap on sensors for limited selling to household Included
Standard Warranty
(verified by HALT testing)
10 years

STORZ POWER 5KWH BATTERY

BASIC CHARACTERISTICS

Nominal Voltage 51.2 V
Voltage Range 44 – 56.8 V
Capacity (Ah) 100 (Ah)
Continuous Charging Current 100 A
Continuous Discharging Current 100 A
Peak Current 120 A, ≤ 0.3s
Storage Temperature <86°F, SOC between 20%-60%
Output Anderson Terminal
Communication Type Double RS485
Protection Function Over-charge; over-discharge; over-current; short circuit; temperature protection

BATTERY CHEMISTRY

Energy 5,120 Wh (100% DOD @ 0.2C Rate @ 77°F)
Chemistry Lithium-Iron Phosphate (LFP)
Cycle Life 4,000+ cycles (@0.2CA 80%DOD)
Temperature Range 14°F to 113°F

FEATURES & COMPLIANCE

Compatibility All PV inverter manufacturers & grid-tied PV Systems
Compliance UL 1642, UN 38.2
Stacking Up to 14 unites in parallel

WARRANTY

Limited Warranty 10 years or 4,000 cycles @ 77°F

MECHANICAL DATA

Dimensions (not including leads & handles) 17″ x 17″ x 8.75″
Weight 106 lbs
Installation Rack or Floor Mounted
Cooling Natural Convection – No Fan
Case Material Metal
Included BMU/BMS/Modbus/Anderson
