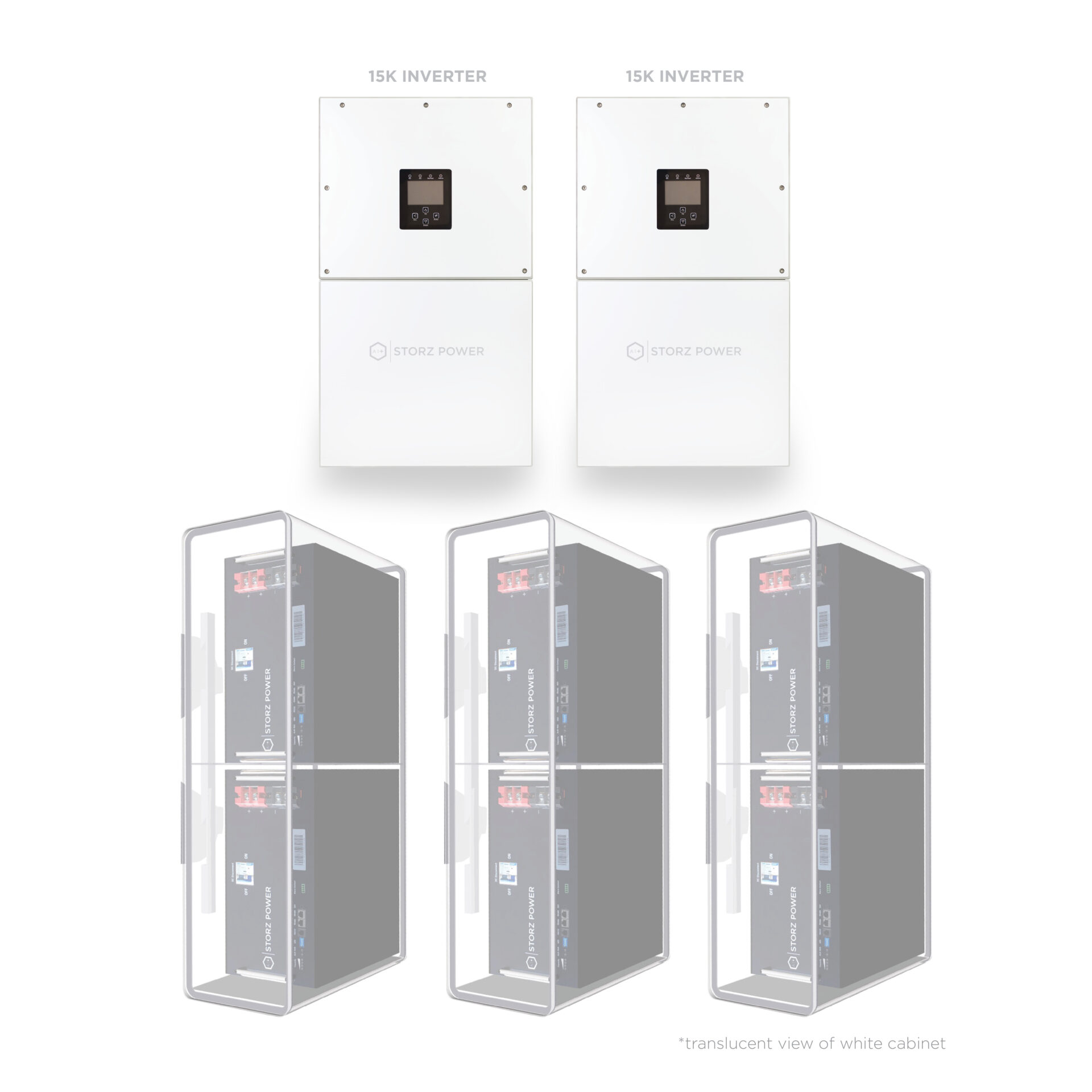

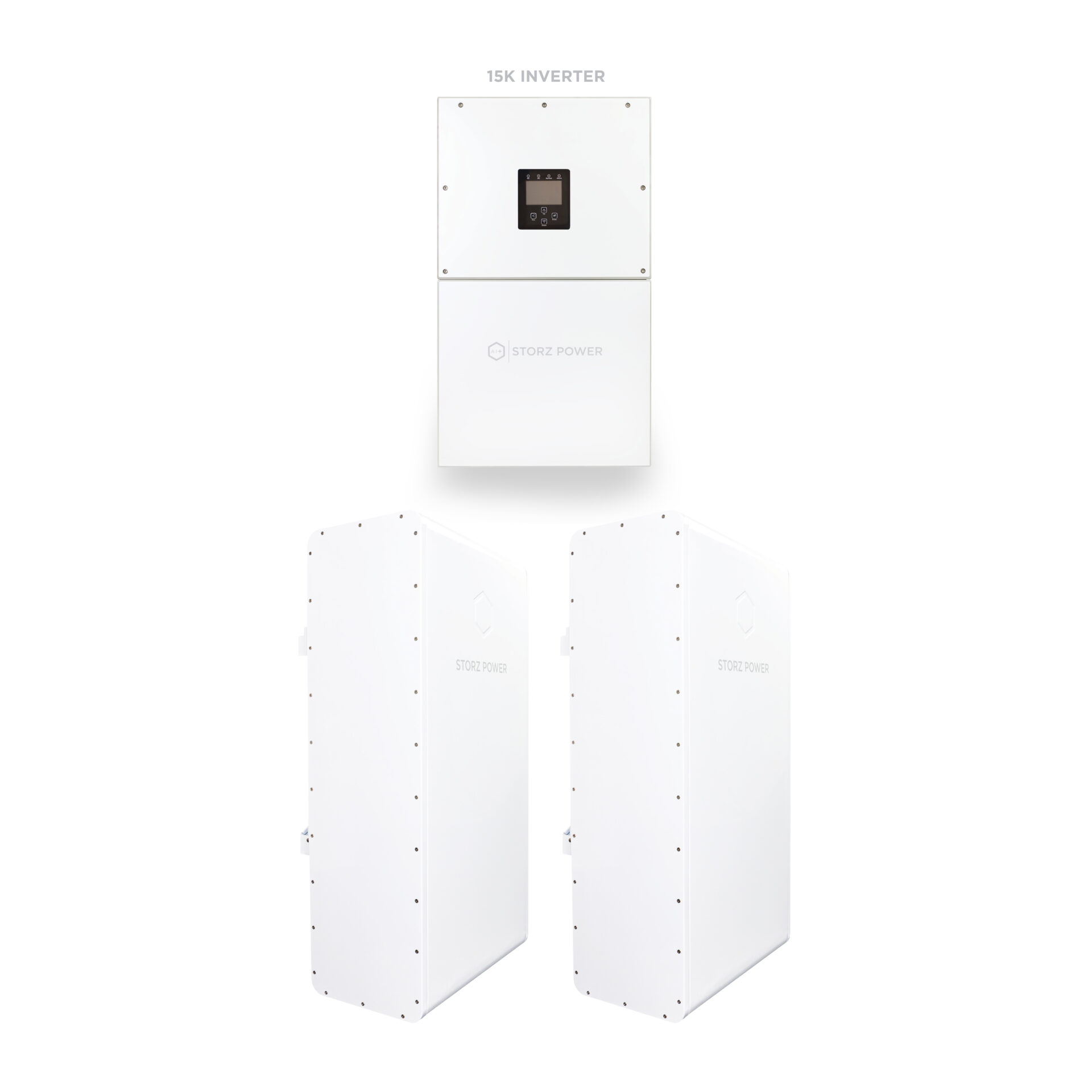

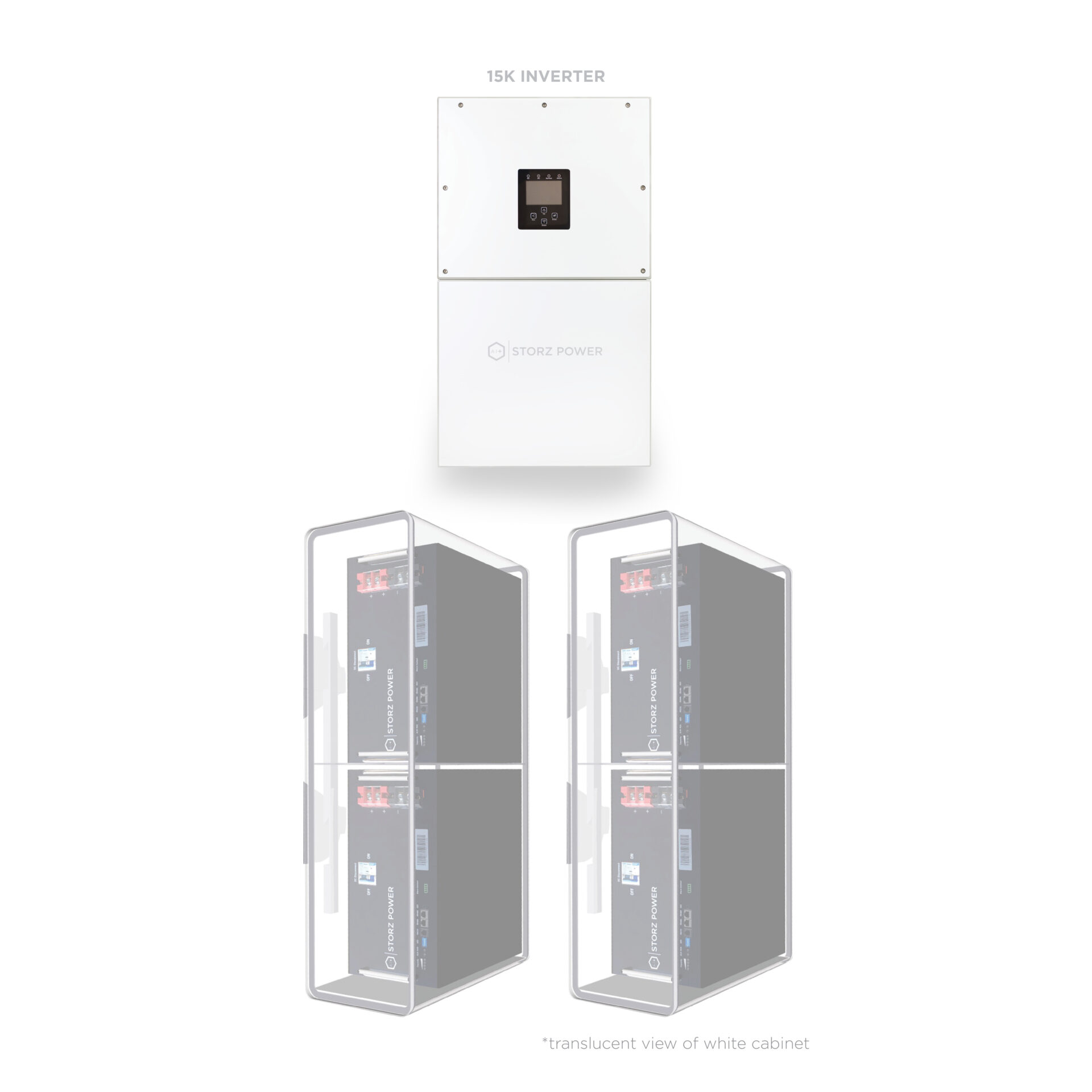

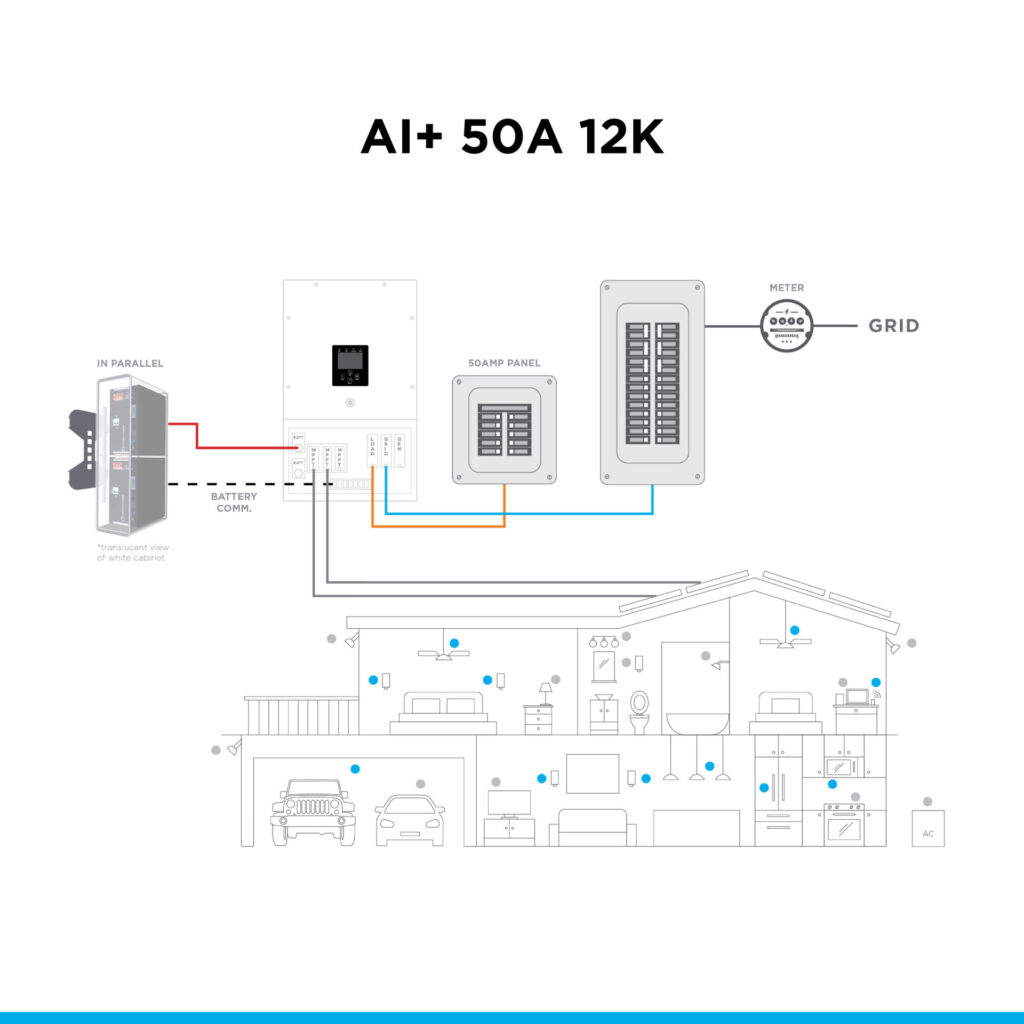

THIS PACKAGE INCLUDES:
starting at 50a of access
+ 10.24 to 501.76 kwh batteries
+ 12 to 108 kw inverters

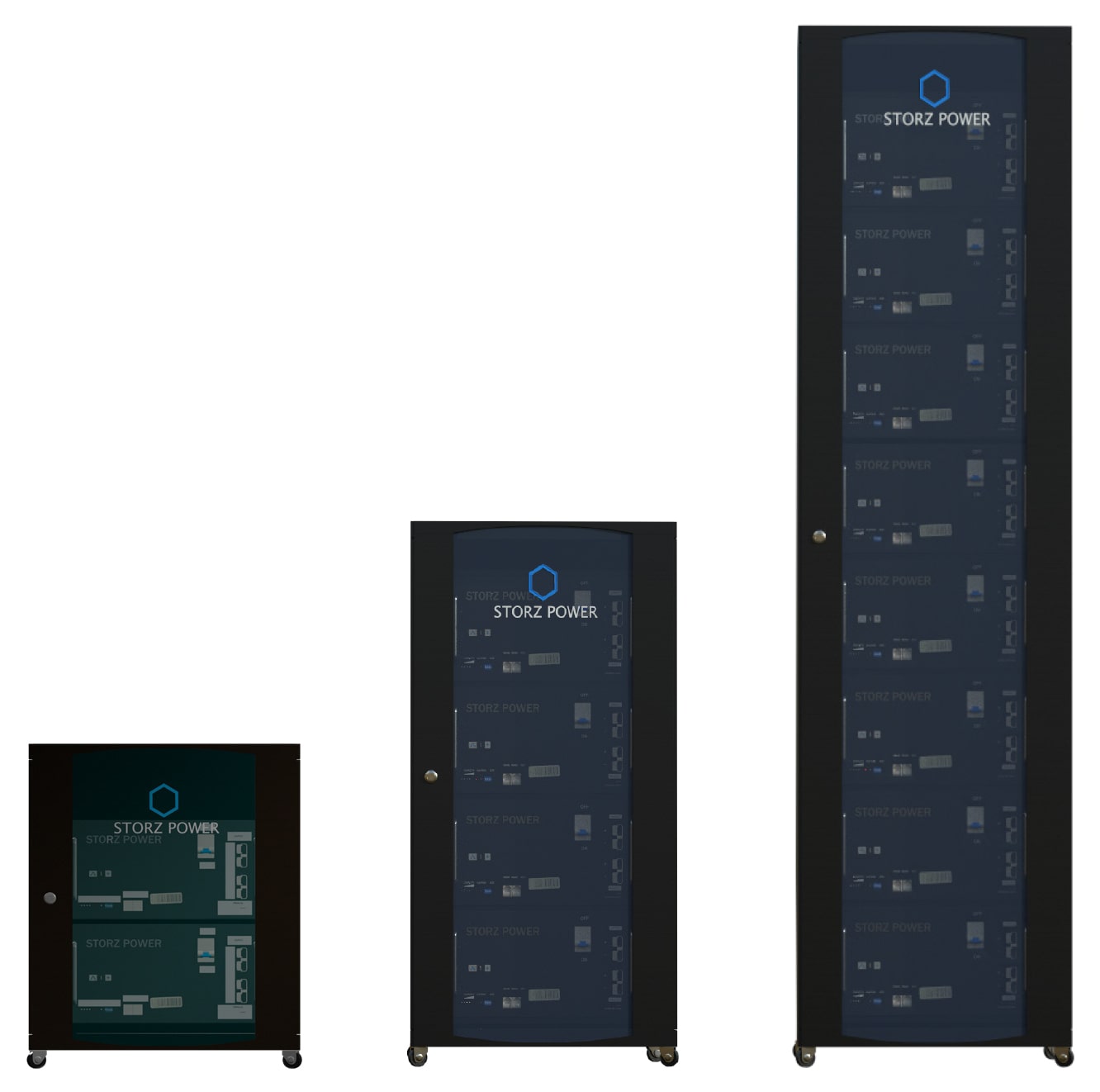

STORZ POWER 5.12 KWH BATTERIES
Using the safest chemistry available today, the Storz Power LFP ESS System will support all of your needs. LFP (LithiomIron Phosphate) battery technology means high density, smaller footprint, and 8,000+ battery cycles. One Storz Power LFP battery boasts a small physical size of 17”x 17” x 8.75”; it also has a weight of only 106 lbs.

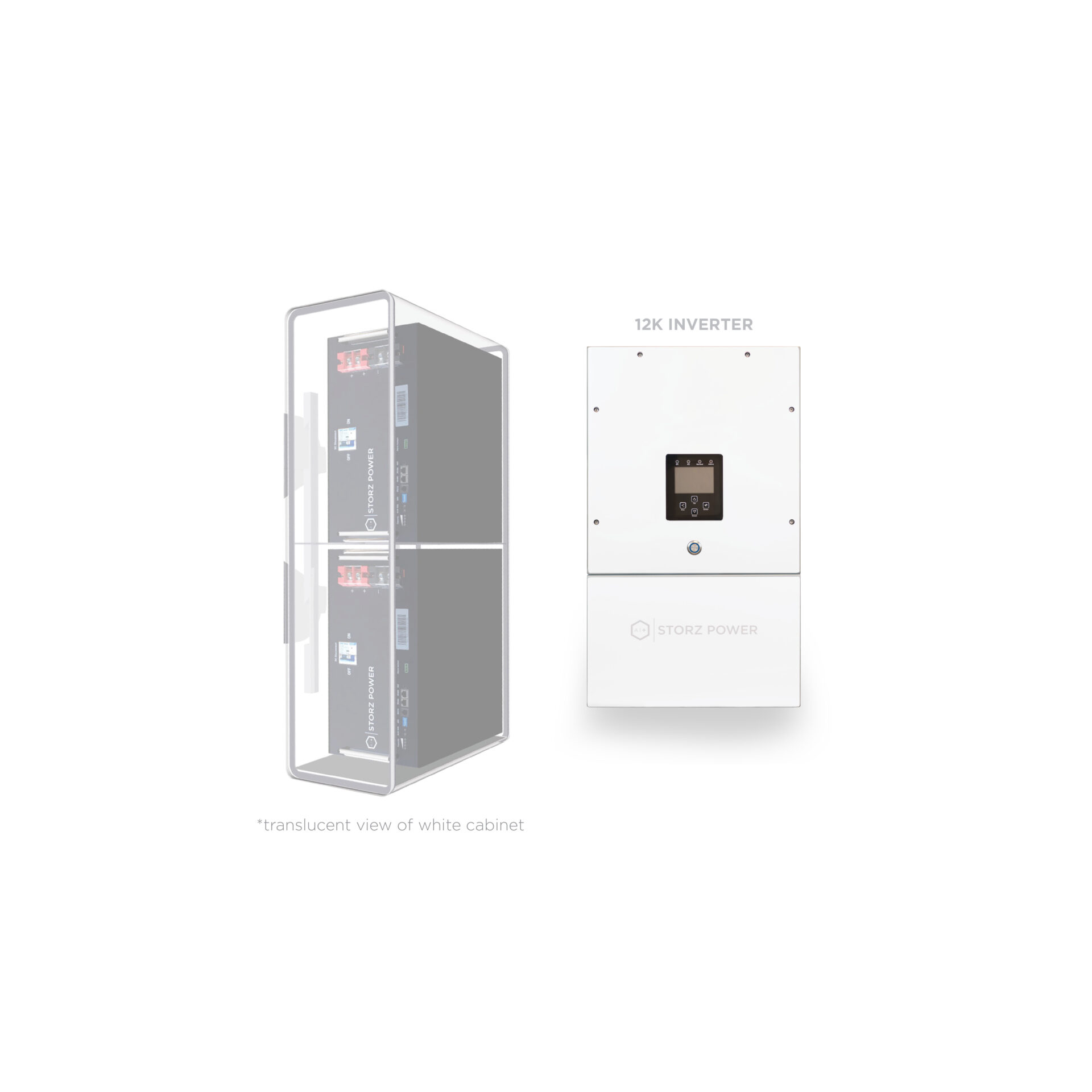

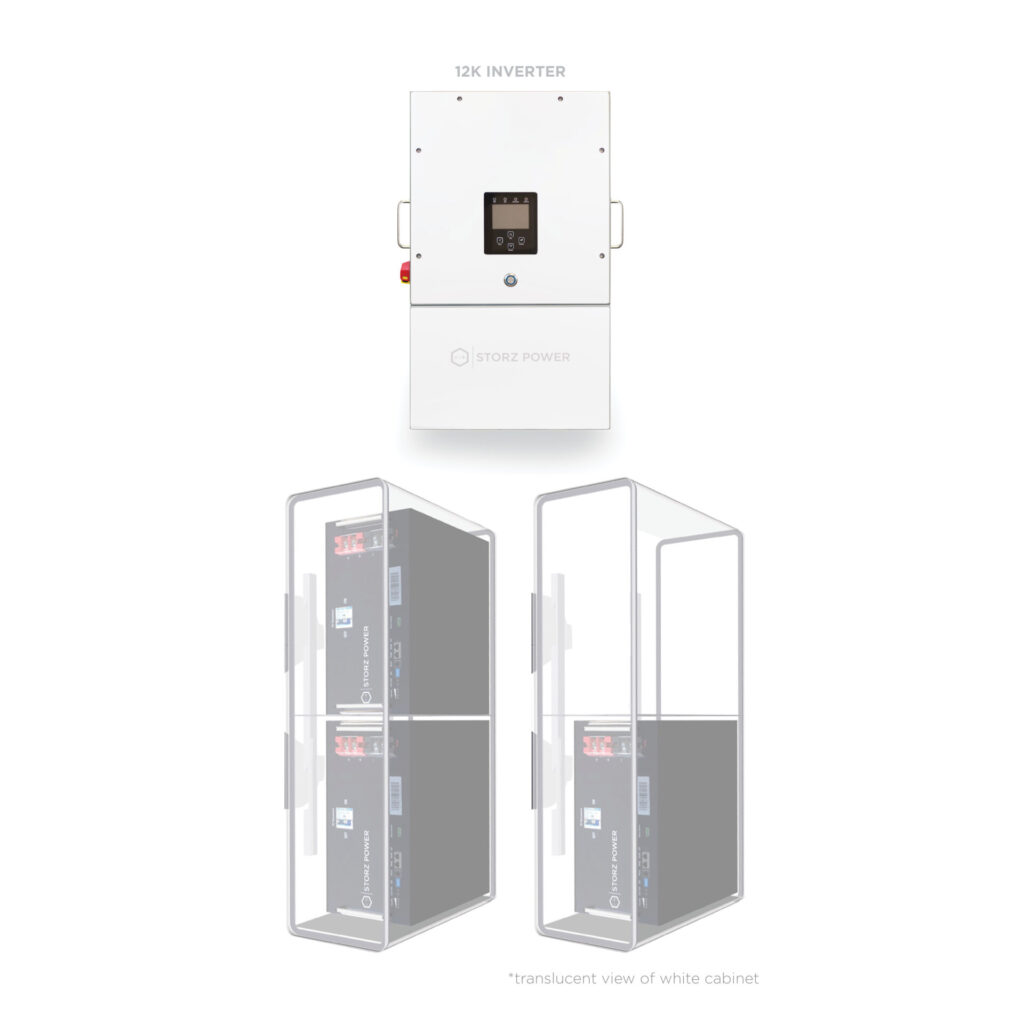

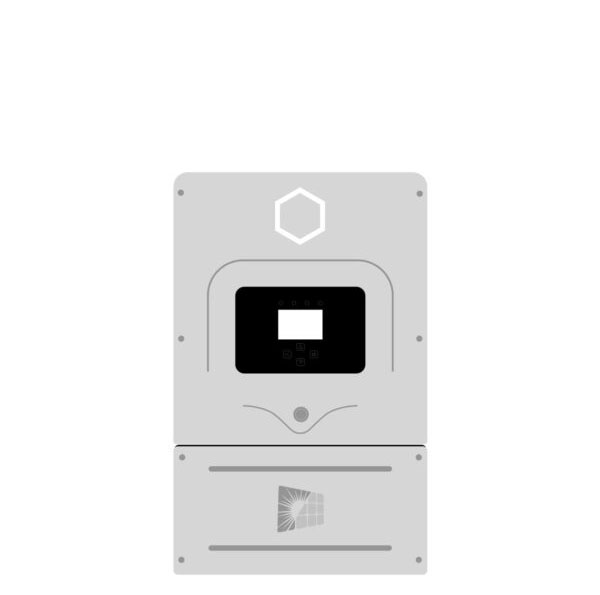

Stack up to 9 inverters to support the load that you need. The 12K inverter pumps out power just like the grid, allowing you to power 120V & 240V appliances simultaneously up to 100 amps of critical load at 120V. There’s only a 4% energy loss vs. 14%+ loss in today’s other battery based systems. The inverter will work with net metering and time of use.

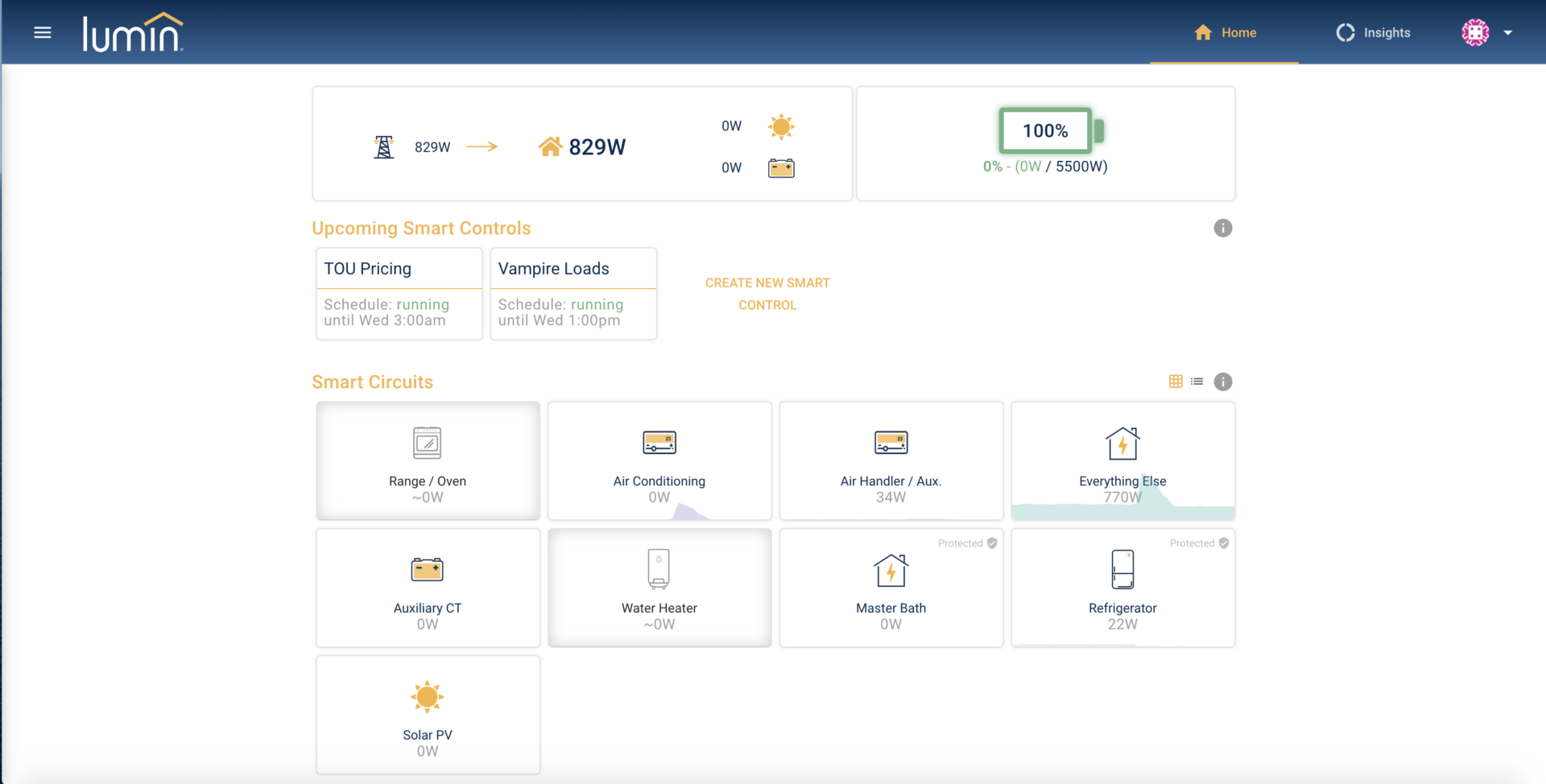

When you choose the AI+ SMART ACCESS package, control up to 200 amps of access and data on your energy consumption in real-time. The whole home control app allows the flexibility to change where you’d like your energy to go based on your energy needs. Setup automation or manual controls through the app.
*only with the AI+ SMART ACCESS package

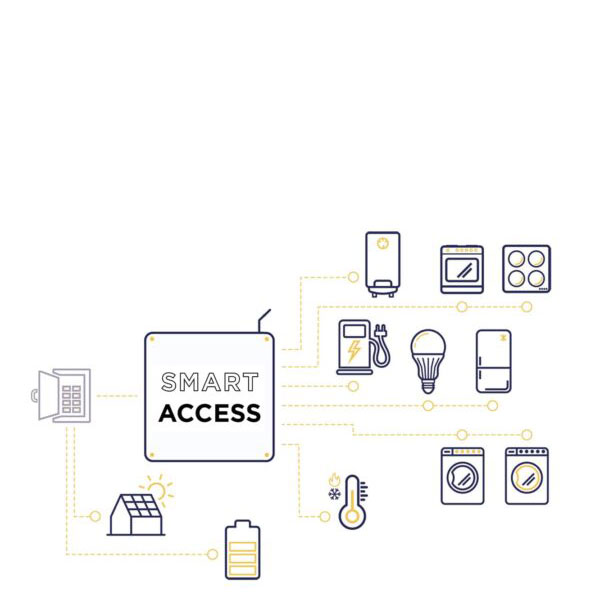

WHOLE HOME CONTROL
• you choose how your energy is used
• full home access up to 200 amps
• turn appliances off & on with ease manually or with a schedule
• control all of your smart home systems in one place

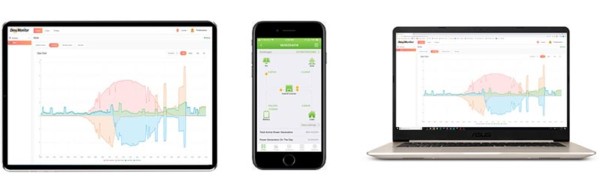

Production & system analysis
Usage & control
Real-time data & reports
AI+ STACK SPECS
10.24 to 501.76 kWh 90% depth of discharge (at 1C Rate at 77°F) 98% round trip efficiency
20,000 W peak 12,000 W continuous
8,000+ @ 77°F Storage temp <86°F State Of Charge 20%-60%
Size & Weight: Battery
26” x 21.5” x 23.6” 250 lbs.
Size & Weight: Inverter
28” x 17.375” x 9.37” 74 lbs.
Up to 501.76kWh battery per inverter Up to 9 inverters @108 kW
Lithium-Iron Phosphate (LFP) Temperature range: 14°F to 113°F (best between 77°F to 87°F)
Most PV inverter manufacturers & grid-tied PV systems
UL 1642, UN 38.3, UL 1973, UL 9540-9540a ready
Electronics certified safety by SGS labs to NEC & UL specs – NEC 690.4B & NEC 705.4/6 Grid sell back – UL1741 – 2010/2018, IEEE1547z-2003/2014, FCC classB, UL1741SA, CA Rule 21, HECO Rule 14H PV DC disconnect switch – NEC 240.15 Ground fault detection – NEC 690.5
PV rapid shutdown control – NEC 690.12 PV arc fault detection – NEC 690.11/UL1699B PV input lightning protection AC input/output 50XA breakers
Battery breaker / disconnect User wiring enclosure 4/3/4” & 1 knock-outs
15 year performance warranty or 8,000 cycles @ 77°F 10 year product warranty
10 year standard warranty
Rack or floor mounted
120/240V 50A Breakers
AC in/out AC load out AC gen in/smart load out
Only 4% energy loss vs. 14% in today’s other battery based systems
Pumps out power just like the grid, allowing you to power 120V & 240V appliances simultaneously @50 amps of critical load
Manages power from solar, battery, grid, load, and generator simultaneously. Grid-tied, hybrid, or off-grid capability.
Expandable AC coupled up to 9.6 kWac & 16.5kW DC coupled or a combo of 15.4kW along with 1-98 batteries
Color touch display Quiet variable-speed fans 48V battery 4 PV inputs PV shut-off Wiring knockouts & WiFi Battery temp sensor
Auto-generator start PV rapid shut down External current sensors Battery communication
